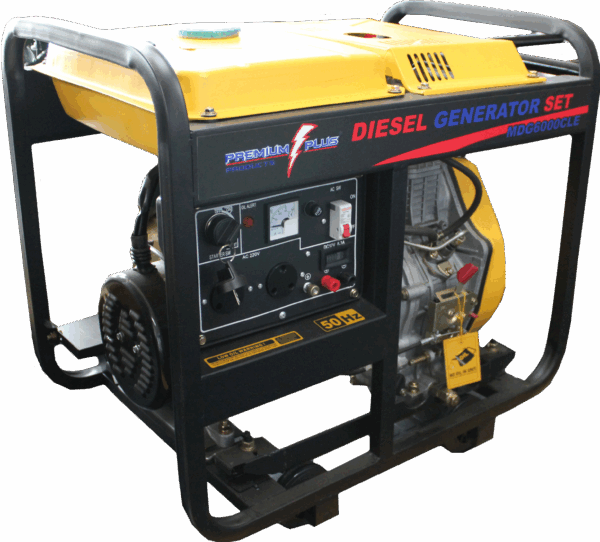

| Model | MDG6500 |
| GENERATOR | |
|---|---|
| Type | Single Phase A.C Generator |
| Frequency (Hz) | 50 / 60 |
| Rated Power (kW) | 5.0 / 5.5 |
| Max Power (kW) | 5.5 / 6.0 |
| Voltage (A.C) (V) | 110, 115, 120, 220, 230, 240, 110/220, 115/230, 120/240 |
| Voltage (D.C) (V) | 12 |
| Current (D.C) (A) | 6 |
| Power Factor | 1.0 |
| Phase Number | Single Phase |
| Pole Number | 2 |
| Excitation | Self-Excitation Type |
| Insulation | G1 |
| Voltage Regulation System | Condenser Compensating System |
| ENGINE | |
|---|---|
| Engine Type | 186F |
| Type | 4-Stroke, Single Cylinder, Air Cooling, Direct Injection Diesel Engine |
| Speed (rpm/min) | 3000 / 3600 |
| Cont. Output (kW) | 5.7 / 6.3 |
| Bore x Stroke (mm) | 86 x 72 |
| Displacement (L) | 0.418 / 0.474 |
| Cooling System | Forced Air-Cooled System |
| Lubrication System | Forced Lubrication |
| Lube Oil Capacity (L) | 1.65 |
| Start System | Recoil Start / Electric Start |
| Fuel Oil | Diesel Oil |
| Fuel Oil Tank Capacity (L) | Genset Type (1) – 5.5 |
| Genset Type (2-5) – 12.5 | |
| Genset Type (6) – 45 | |
| Low Oil Pressure Alarm System | Have |
| Unit | |
|---|---|
| Operation Capacity (hr) |
Genset Type (1) – 2.5 / 2.2 |
| Genset Type (2-5) – 5.6 / 5.1 | |
| Genset Type (6) – 20 / 18 | |
| Acid Battery Capacity (AH) | 24~36 |
| Care Free Battery Capacity (AH) | 17~36 |
