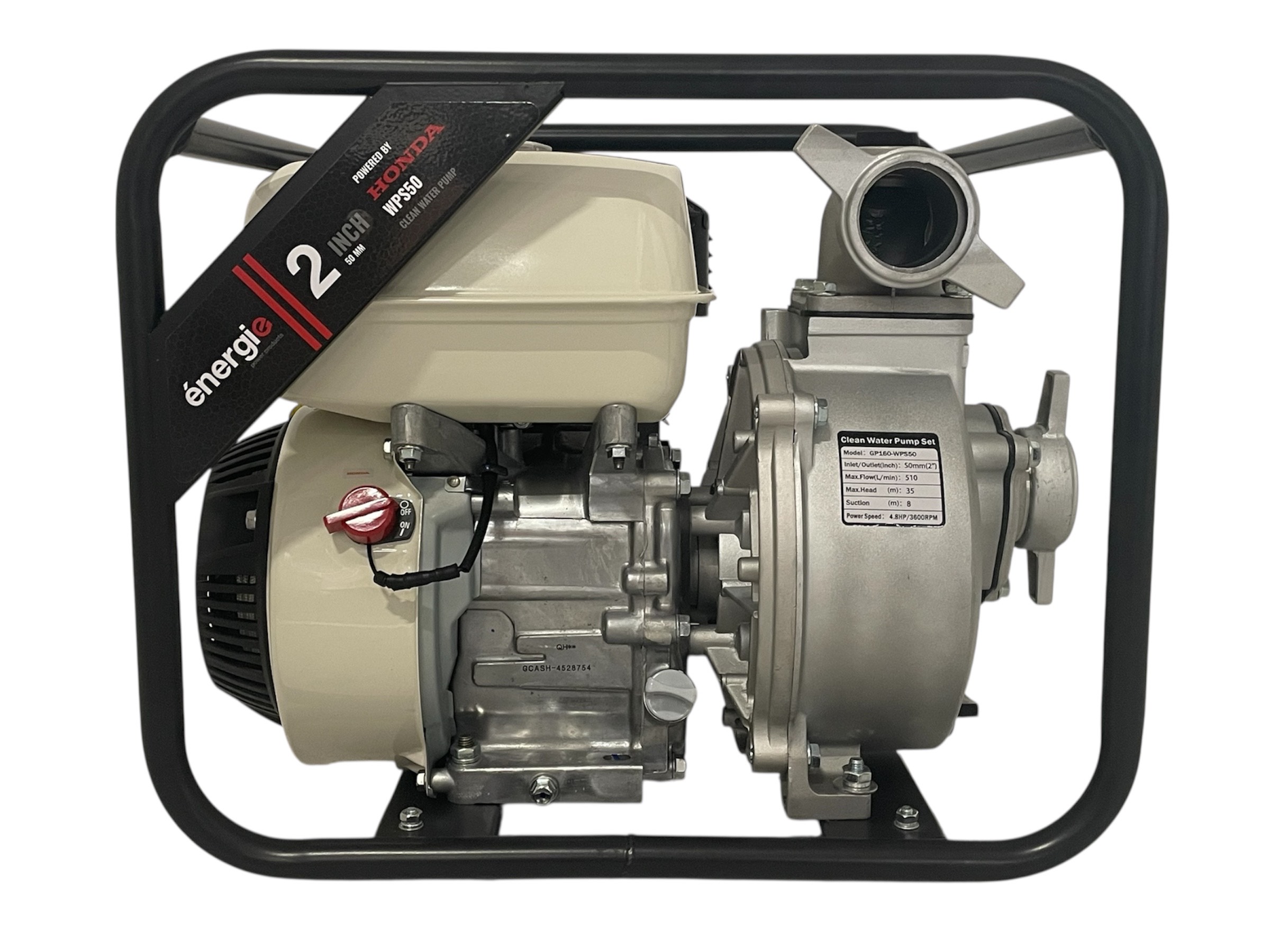

| Make |
Honda |
| Model |
GP 160 |
| Power |
4.8HP – 3.6kW / 3600Rpm |
| Type |
Single-cylinder Four Stroke Air-cooled |
| Displacement |
163cc / 0.163L |
| Fuel Type |
Gasoline |
| Starter |
Recoil Start |
| Consumption |
280 g/kwh – 1.4l/h |
| Noise |
80dB at 7m |
| Fuel Tank Size |
3.1L |
| Oil Tank Size |
0.6L |
| Pump |
|
| Make |
Energie |
| Model |
WP50 |
| Inlet and Outlet (inch) |
2″ 50mm / 2″ 50mm |
| Delivery Volume |
550 l/min |
| Max Head |
35m |
| Suction Lift |
8m |
| Driving Power |
3kW |
| Pump Body |
Aluminium Alloy |
| Impelle |
Cast Iron |
| Mechanical Seal |
Carbon-Ceramic |
| Working Speed |
3600Rpm |
| Accessories Included |
Pipe Connector Fittings |
|
2 x 2 inch Pipe Connecting Wrench |
|
Rubber Gaskets |
| Suction Strainer |
|
| Inlet Size |
50mm / 2″ |
| Material |
Galvanized Steel |
|
Hose Clamps x3 |
| Recommended Piping |
Inlet Hose |
| Material |
Rubber or Neoprene |
| Type |
Reinforced Synthetic Rubber |
| Thickness |
3-6mm |
|
Outlet Hose |
| Material |
Rubber or Neoprene |
| Type |
Reinforced Synthetic Rubber |
| Thickness |
3-6mm |
| Permissible Pumping |
|
| Allowable Liquids |
Clean water, Freshwater, non-corrosive liquids |
| Solid Handling |
|
| Pump |
5mm |
| Restricted by Strainer |
3mm |
| Fuels & Lubricants (recommended) |
|
| Gasoline |
95ppm or better |
| Oils |
15W / 40 |
| Consumables (service parts) |
|
| Engine Air Filter |
Contact Dealer Directly |
| Engine Oil Filter |
Contact Dealer Directly |
| Engine Fuel Filter |
Contact Dealer Directly |
| Dimensions & Weights |
|
| Length |
530mm |
| Width |
425mm |
| Height |
465mm |
| Dry & Wet Weight |
24.8kg / 28.5kg |
| Policies |
|
| Warranty |
1 Year Limited Warranty |
