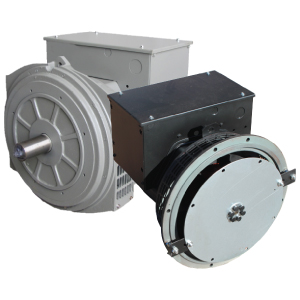

| Ratings |
Winding 311 / 0.8 Power Factor |
Winding 05 |
| Duty / Temp / Ambient T° |
Cont. / 125K / 40°C |
Cont. / 125K / 40°C |
Cont. 125K / 40°C |
| Phase |
3 Phase |
1 Phase |
1 Phase |
| Series Star |
380 |
400 |
415 |
440 |
|
|
|
Power Factor |
| Parallel Star |
190 |
200 |
208 |
220 |
|
|
|
0.8 |
1 |
| Series Delta |
220 |
230 |
240 |
254 |
|
|
|
|
|
| Double Delta |
|
|
|
|
220 |
230 |
240 |
220, 230, 240 |
|
kVA |
kW |
kVA |
kW |
kVA |
kW |
kVA |
kW |
kVA |
kW |
kVA |
kW |
kVA |
kW |
kVA |
kW |
kVA |
kW |
| SLG164A |
8.1 |
6.5 |
8.1 |
6.5 |
8.1 |
6.5 |
6.2 |
5 |
4.7 |
3.8 |
4.7 |
3.8 |
4.7 |
3.8 |
5.4 |
4.3 |
6.8 |
6.8 |
| SLG164B |
11 |
8.8 |
11 |
8.8 |
11 |
8.8 |
8.4 |
6.7 |
6.4 |
5.1 |
6.4 |
5.1 |
6.4 |
5.1 |
7.4 |
5.9 |
8.4 |
8.4 |
| SLG164C |
13.5 |
10.8 |
13.5 |
10.8 |
13.5 |
10.8 |
11 |
8.8 |
7.8 |
6.2 |
7.8 |
6.2 |
7.8 |
6.2 |
9 |
7.2 |
11 |
11 |
| SLG164D |
16 |
12.8 |
16 |
12.8 |
16 |
12.8 |
13.5 |
10.8 |
9.3 |
7.4 |
9.3 |
7.4 |
9.3 |
7.4 |
10.8 |
8.6 |
13 |
13 |

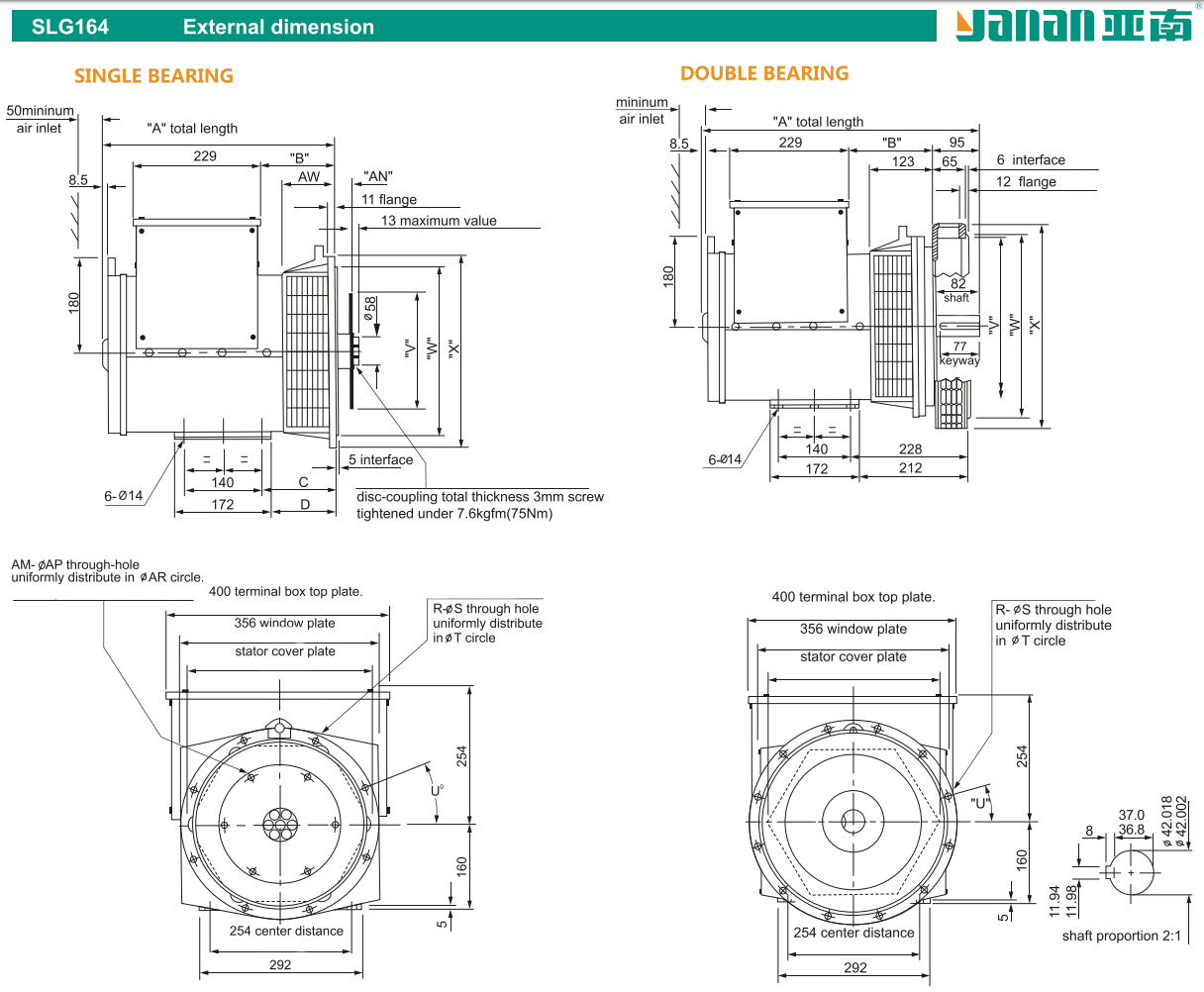

| Dimension (mm) Single Bearing |
| Model |
A |
B |
N.W |
G.W |
LxWxH |
| SAE3 / 5 |
SAE4 |
SAE6 |
SAE3 / 5 |
SAE4 |
SAE6 |
(kg) |
(kg) |
(mm) |
| SLG164A |
403.5 |
391.5 |
435.2 |
119.5 |
107 |
151.2 |
85 |
95 |
515 x 485 x 620 |
| SLG164B |
403.5 |
391.5 |
435.2 |
119.5 |
107 |
151.2 |
90 |
102 |
515 x 485 x 620 |
| SLG164C |
403.5 |
391.5 |
435.2 |
119.5 |
107 |
151.2 |
96 |
110 |
515 x 485 x 620 |
| SLG164D |
403.5 |
391.5 |
435.2 |
119.5 |
107 |
151.2 |
99 |
116 |
515 x 485 x 620 |
| Dimension (mm) Double Bearing |
| Model |
A |
B |
N.W (kg) |
G.W (kg) |
LxWxH (mm) |
| SLG164A |
511.5 |
137 |
91 |
101 |
565 x 485 x 620 |
| SLG164B |
511.5 |
137 |
98 |
108 |
565 x 485 x 620 |
| SLG164C |
511.5 |
137 |
106 |
116 |
565 x 485 x 620 |
| SLG164D |
511.5 |
137 |
112 |
122 |
565 x 485 x 620 |
| Flange (mm) Single Bearing |
| S.A.E. No. |
AW |
R |
S |
T |
U |
W |
X |
C |
D |
| 3 |
105 |
8 |
11 |
428.6 |
15 |
409.5 |
451 |
145 |
129 |
| 4 |
93 |
8 |
11 |
381 |
15 |
361.9 |
402 |
133 |
117 |
| 5 |
105 |
8 |
11 |
333.3 |
22.5 |
314.3 |
356 |
145 |
129 |
| 6 |
136.7 |
8 |
11 |
285.8 |
22.5 |
266.7 |
308 |
176.7 |
160.7 |
| Flange (mm) Double Bearing |
| S.A.E. No |
R |
S |
T |
U |
V |
W |
X |
| 3 |
12 |
11 |
428.6 |
15 |
396 |
409.5 |
451 |
| 4 |
12 |
11 |
381 |
15 |
352 |
361.9 |
403 |
| 5 |
8 |
11 |
333.3 |
22.5 |
301 |
314.3 |
356 |
| Disc Coupling (mm) |
| S.A.E. No. |
AN |
AM |
AP |
AR |
V |
| 6.5 |
30.16 |
6 |
8.7 |
200 |
215.8 |
| 7.5 |
30.16 |
8 |
8.7 |
222.2 |
241.2 |
| 8 |
61.9 |
6 |
11 |
244.5 |
263.4 |
| 10 |
53.98 |
8 |
11 |
295.3 |
314.2 |
