| Ratings |
Winding 311 / 0.8 Power Factor |
Winding 05 |
| Duty / Temp / Ambient T° |
Cont. / 125K / 40°C |
Cont. / 125K / 40°C |
Cont. 125K / 40°C |
| Phase |
3 Phase |
1 Phase |
1 Phase |
| Series Star |
380 |
400 |
415 |
440 |
|
|
|
Power Factor |
| Parallel Star |
190 |
200 |
208 |
220 |
|
|
|
0.8 |
1 |
| Series Delta |
220 |
230 |
240 |
254 |
|
|
|
|
|
| Double Delta |
|
|
|
|
220 |
230 |
240 |
220, 230, 240 |
|
kVA |
kW |
kVA |
kW |
kVA |
kW |
kVA |
kW |
kVA |
kW |
kVA |
kW |
kVA |
kW |
kVA |
kW |
kVA |
kW |
| SLG184E |
22.5 |
18 |
22.5 |
18 |
22.5 |
18 |
17.5 |
14 |
13 |
10.4 |
13 |
10.4 |
13 |
10.4 |
15 |
12 |
16.6 |
16.6 |
| SLG184F |
27.5 |
22 |
27.5 |
22 |
27.5 |
22 |
22.5 |
18 |
16 |
12.8 |
16 |
12.8 |
16 |
12.8 |
18.5 |
14.8 |
20 |
20 |
| SLG184G |
31.3 |
25 |
31.3 |
25 |
31.3 |
25 |
27.5 |
22 |
18.1 |
14.5 |
18.1 |
14.5 |
18.1 |
14.5 |
21 |
16.8 |
22.8 |
22.8 |
| SLG184H |
37.5 |
30 |
37.5 |
30 |
37.5 |
30 |
32.5 |
26 |
21.7 |
17.4 |
21.7 |
17.4 |
21.7 |
17.4 |
25 |
20 |
27 |
27 |
| SLG184J |
40 |
32 |
40 |
32 |
40 |
32 |
35 |
28 |
23.2 |
18.6 |
24.7 |
19.8 |
23.2 |
18.6 |
28 |
22.4 |
30 |
30 |

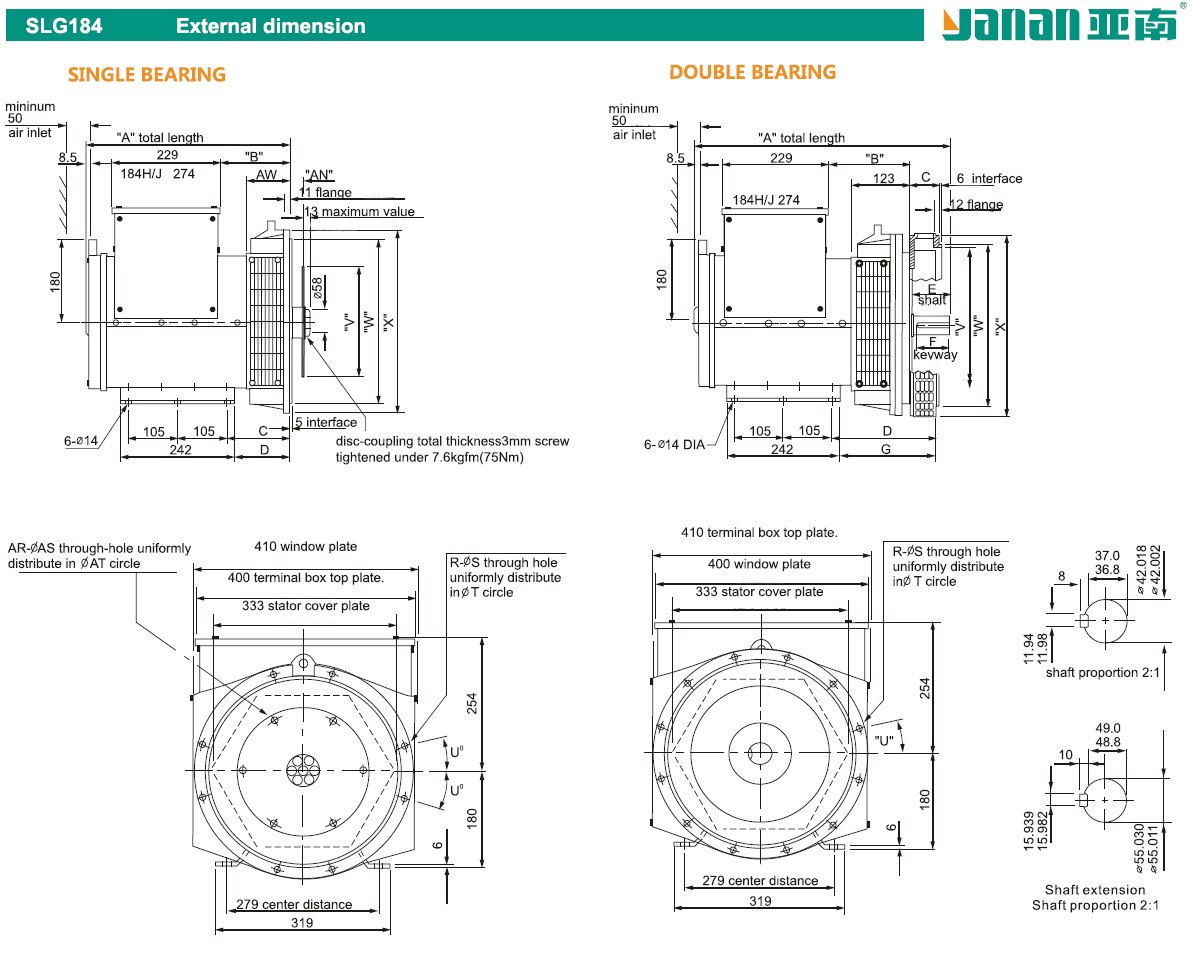

| Dimension (mm) Single Bearing |
| Model |
A |
B |
N.W |
G.W |
LxWxH |
| SAE2 |
SAE3 |
SAE4 |
SAE5 |
SAE2 |
SAE3 |
SAE4 |
SAE5 |
(kg) |
(kg) |
(mm) |
| SLG184E |
471 |
443.5 |
431.5 |
443.5 |
186 |
159 |
147 |
159 |
120 |
133 |
565x485x620 |
| SLG184F |
561 |
533.5 |
521.5 |
553.5 |
276 |
249 |
237 |
269 |
150 |
156 |
675x510x620 |
| SLG184G |
561 |
533.5 |
521.5 |
553.5 |
276 |
249 |
237 |
269 |
156 |
172 |
675x510x620 |
| SLG184H |
620.5 |
593.5 |
581.5 |
613.5 |
291 |
264 |
252 |
284 |
216 |
226 |
740x510x620 |
| SLG184J |
620.5 |
593.5 |
581.5 |
613.5 |
291 |
264 |
252 |
284 |
226 |
236 |
740x510x620 |
| Dimension (mm) Double Bearing |
| Model |
A |
B |
C |
D |
E |
F |
G |
N.W (kg) |
G.W (kg) |
LxWxH (mm) |
| SLG184E |
551.5 |
177 |
65 |
228 |
82 |
77 |
212 |
131 |
141 |
675x510x620 |
| SLG184F |
641.5 |
267 |
65 |
228 |
82 |
77 |
212 |
154 |
164 |
740x510x620 |
| SLG184G |
641.5 |
267 |
65 |
228 |
82 |
77 |
212 |
170 |
180 |
740x510x620 |
| SLG184H |
734.5 |
282 |
105 |
268 |
110 |
100 |
252 |
220 |
230 |
820x510x620 |
| SLG184J |
734.5 |
282 |
105 |
268 |
110 |
100 |
252 |
230 |
240 |
820x510x620 |
| Flange (mm) Single Bearing |
| S.A.E. No |
AW |
R |
S |
T |
U |
W |
X |
C |
D |
| 2 |
132.3 |
12 |
11 |
466.7 |
15 |
447.6 |
489 |
172 |
156 |
| 3 |
105 |
8 |
11 |
428.6 |
15 |
409.5 |
451 |
145 |
129 |
| 4 |
93 |
8 |
11 |
381 |
15 |
361.9 |
402 |
133 |
117 |
| 5 |
125 |
8 |
11 |
333.3 |
22.5 |
314.3 |
356 |
165 |
149 |
| 6 |
136.7 |
8 |
11 |
285.8 |
22.5 |
266.7 |
308 |
176.7 |
160.7 |
| Flange (mm) Double Bearing |
| S.A.E. No |
R |
S |
T |
U |
V |
W |
X |
| 1 |
12 |
12.7 |
530.2 |
15 |
500 |
511.17 |
553 |
| 2 |
12 |
11 |
466.7 |
15 |
432 |
447.6 |
495 |
| 3 |
12 |
11 |
428.6 |
15 |
396 |
409.5 |
451 |
| 4 |
12 |
11 |
381 |
15 |
352 |
361.9 |
403 |
| 5 |
8 |
11 |
333.3 |
22.5 |
301 |
314.3 |
356 |
| Disc Coupling (mm) |
| S.A.E. No |
AN |
AR |
AS |
AT |
V |
| 6.5 |
30.16 |
6 |
8.7 |
200 |
215.8 |
| 7.5 |
30.16 |
8 |
8.7 |
222.2 |
241.2 |
| 8 |
61.98 |
6 |
11 |
244.5 |
263.4 |
| 10 |
53.98 |
8 |
11 |
295.3 |
314.2 |
| 11.5 |
39.68 |
8 |
11 |
333.4 |
352.3 |
| 14 |
25.4 |
8 |
13.5 |
438.2 |
466.5 |
