| Ratings |
Winding 311 / 0.8 Power Factor |
Winding 05 |
| Duty / Temp / Ambient T° |
Cont. / 125K / 40°C |
Cont. / 125K / 40°C |
Cont. 125K / 40°C |
| Phase |
3 Phase |
1 Phase |
1 Phase |
| Series Star |
380 |
400 |
415 |
440 |
|
|
|
Power Factor |
| Parallel Star |
190 |
200 |
208 |
220 |
|
|
|
0.8 |
1 |
| Series Delta |
220 |
230 |
240 |
254 |
|
|
|
|
|
| Double Delta |
|
|
|
|
220 |
230 |
240 |
220, 230, 240 |
|
kVA |
kW |
kVA |
kW |
kVA |
kW |
kVA |
kW |
kVA |
kW |
kVA |
kW |
kVA |
kW |
kVA |
kW |
kVA |
kW |
| SLG224C |
42.5 |
34 |
42.5 |
34 |
42.5 |
34 |
30 |
24 |
28.5 |
22.8 |
28.5 |
22.8 |
28.5 |
22.8 |
28.5 |
22.8 |
28.5 |
22.8 |
| SLG224D |
50 |
40 |
50 |
40 |
50 |
40 |
37.5 |
30 |
33.5 |
26.8 |
33.5 |
26.8 |
33.5 |
26.8 |
35 |
28 |
35 |
28 |
| SLG224E |
60 |
48 |
60 |
48 |
60 |
48 |
45 |
36 |
40 |
32 |
40 |
32 |
40 |
32 |
40 |
32 |
40 |
40 |
| SLG224F |
72.5 |
58 |
72.5 |
58 |
72.5 |
58 |
55 |
44 |
48.5 |
38.8 |
48.5 |
38.8 |
48.5 |
38.8 |
50 |
40 |
50 |
50 |
| SLG224G |
85 |
68 |
85 |
68 |
85 |
68 |
75 |
60 |
56.5 |
45.2 |
56.5 |
45.2 |
56.5 |
45.2 |
60 |
48 |
60 |
60 |

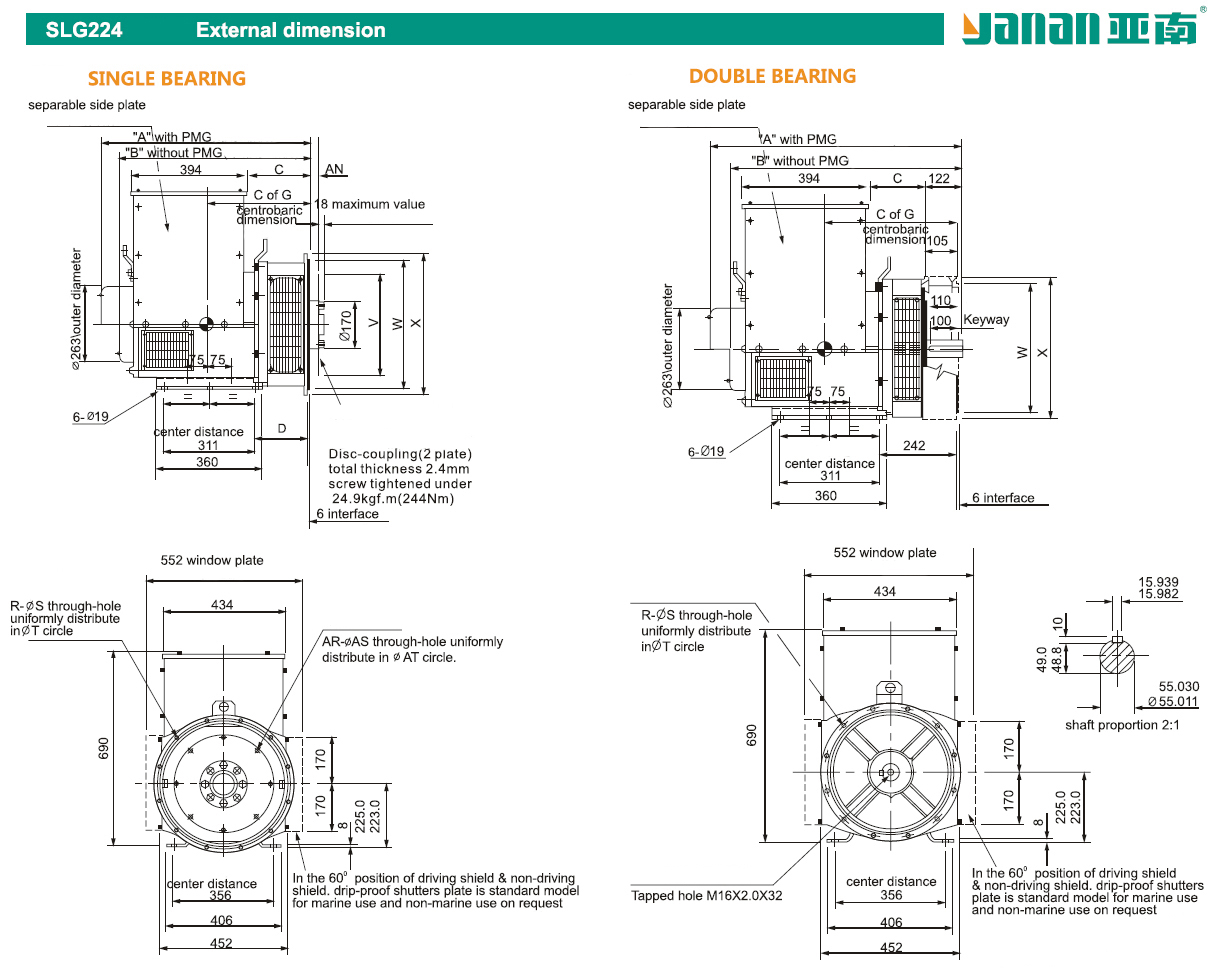

| Dimension (mm) Single Bearing |
| SAE2.4 |
Model |
A |
B |
C |
C of G |
LxWxH (mm) |
| SLG224C |
734 |
671 |
233.5 |
323 |
820 x 540 x 870 |
| SLG224D |
734 |
671 |
233.5 |
333 |
820 x 540 x 870 |
| SLG224E |
824 |
761 |
323.5 |
348 |
890 x 540 x 870 |
| SLG224F |
824 |
761 |
323.5 |
358 |
890 x 540 x 870 |
| SLG224G |
869 |
806 |
368.5 |
373 |
930 x 540 x 875 |
| SAE3 |
SLG224C |
710 |
647 |
210 |
311 |
820 x 540 x 870 |
| SLG224D |
710 |
647 |
210 |
321 |
820 x 540 x 870 |
| SLG224E |
800 |
737 |
300 |
336 |
890 x 540 x 870 |
| SLG224F |
800 |
737 |
300 |
346 |
890 x 540 x 870 |
| SLG224G |
845 |
782 |
345 |
361 |
930 x 540 x 875 |
| Dimension (mm) Double Bearing |
| Model |
A |
B |
C |
C of G |
N.W(kg) |
G.W(kg) |
LxWxH(mm) |
| SLG224C |
792 |
729 |
170 |
368 |
250 |
275 |
820 x 540 x 870 |
| SLG224D |
792 |
729 |
170 |
378 |
270 |
295 |
820 x 540 x 870 |
| SLG224E |
882 |
819 |
260 |
393 |
290 |
315 |
930 x 540 x 875 |
| SLG224F |
882 |
819 |
260 |
403 |
320 |
345 |
930 x 540 x 875 |
| SLG224G |
927 |
864 |
305 |
418 |
360 |
385 |
930 x 540 x 875 |
| Flange (mm) Single Bearing |
| S.A.E. No |
D |
R |
S |
T |
W |
X |
| 2 |
200.5 |
12 |
11 |
466.7 |
447.6 |
490 |
| 3 |
177 |
12 |
11 |
428.6 |
409.5 |
451 |
| 4 |
200.5 |
12 |
11 |
381 |
361.9 |
451 |
| Flange (mm) Double Bearing |
| S.A.E. No |
R |
S |
T |
W |
X |
| 2 |
12 |
11 |
466.7 |
447.6 |
495 |
| 3 |
12 |
11 |
428.6 |
409.5 |
451 |
| 4 |
12 |
11 |
381 |
361.9 |
403 |
| 5 |
8 |
11 |
333.3 |
314.3 |
356 |
| Disc Coupling |
| S.A.E. No |
AN |
AR |
AS |
AT |
V |
| 8 |
61.9 |
6 |
11 |
244.4 |
263.4 |
| 10 |
54 |
8 |
11 |
295.3 |
314.2 |
| 11.5 |
39.7 |
8 |
11 |
333.3 |
352.3 |
| 14 |
25.4 |
8 |
13.5 |
438.2 |
466.6 |
