| Ratings |
Winding 311 / 0.8 Power Factor |
| Duty / Temp Rise / Ambient T° |
Cont. / 125K / 40°C |
Standby-150 / 40°C |
| Phase |
3 Phase |
| Series Star |
380 |
400 |
415 |
440 |
380 |
400 |
415 |
440 |
| Parallel Star |
190 |
200 |
208 |
220 |
190 |
200 |
208 |
220 |
| Series Delta |
220 |
230 |
240 |
254 |
220 |
230 |
240 |
254 |
| Double Delta |
|
|
|
|
|
|
|
|
|
kVA |
kW |
kVA |
kW |
kVA |
kW |
kVA |
kW |
kVA |
kW |
kVA |
kW |
kVA |
kW |
kVA |
kW |
| SLG354C |
450 |
360 |
450 |
360 |
450 |
360 |
450 |
360 |
478 |
382 |
478 |
382 |
478 |
382 |
478 |
382 |
| SLG354D |
500 |
400 |
500 |
400 |
500 |
400 |
500 |
400 |
515 |
412 |
515 |
412 |
515 |
412 |
515 |
412 |
| SLG354E |
600 |
480 |
600 |
480 |
600 |
480 |
600 |
480 |
636 |
509 |
636 |
509 |
636 |
509 |
636 |
509 |
| SLG354FS |
625 |
500 |
625 |
500 |
625 |
500 |
625 |
500 |
661.3 |
529 |
661.3 |
529 |
661.3 |
529 |
661.3 |
529 |
| SLG354F |
670 |
536 |
670 |
536 |
670 |
536 |
650 |
520 |
710 |
568 |
710 |
568 |
710 |
568 |
690 |
552 |

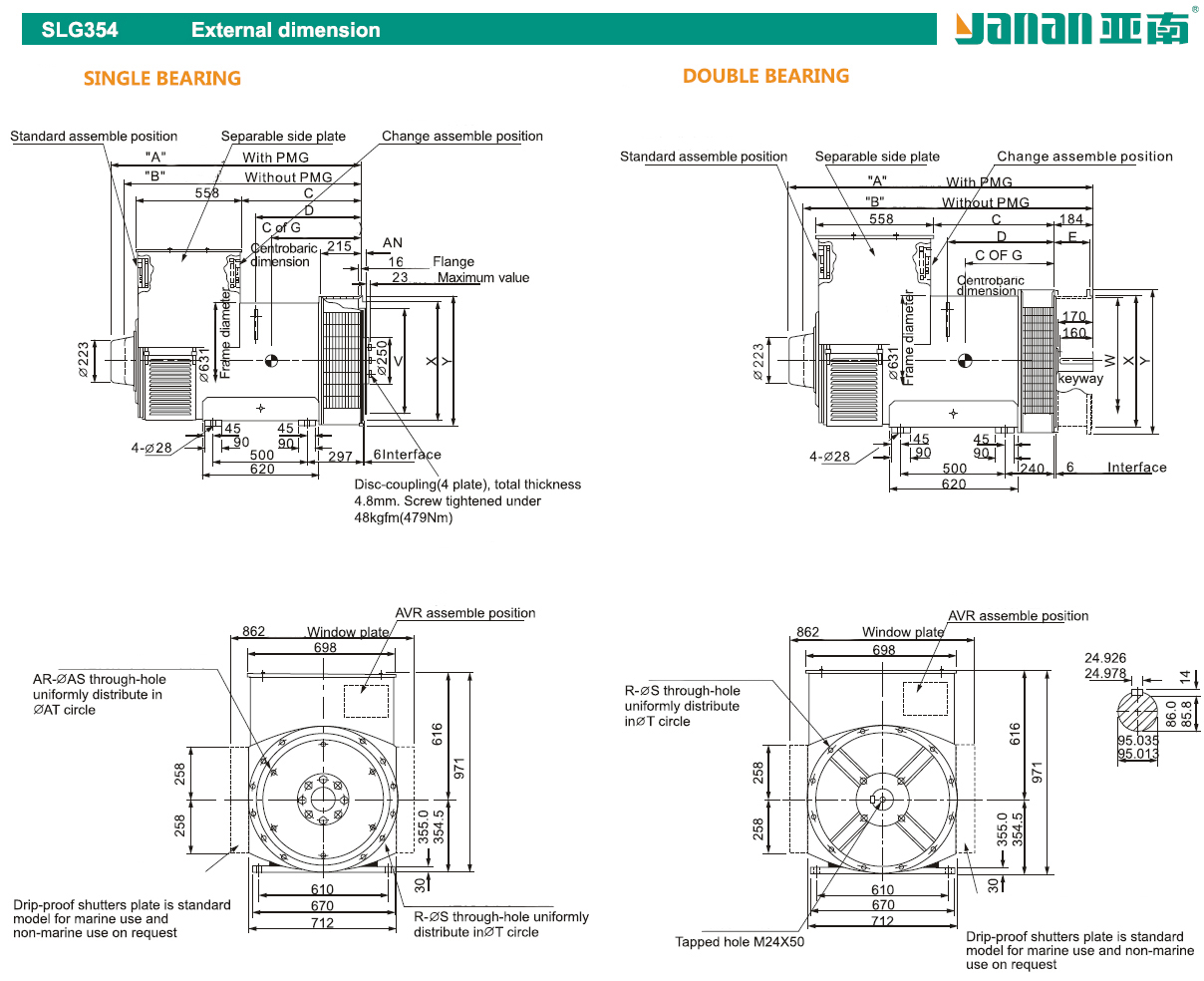

| Dimension (mm) Single Bearing |
| Model |
A |
B |
C |
D |
C of G |
N.W (kg) |
G.W (kg) |
LxWxH (mm) |
| SLG354C |
1337 |
1266 |
642 |
568 |
555 |
1265 |
1350 |
1430 x 830 x 1230 |
| SLG354D |
1337 |
1266 |
642 |
568 |
575 |
1230 |
1450 |
1430 x 830 x 1230 |
| SLG354E |
1337 |
1266 |
642 |
568 |
595 |
1500 |
1598 |
1430 x 830 x 1230 |
| SLG354FS |
1412 |
1341 |
717 |
643 |
620 |
1580 |
1678 |
1500 x 830 x 1230 |
| SLG354F |
1412 |
1341 |
717 |
643 |
620 |
1680 |
1753 |
1500 x 830 x 1230 |
| Dimension (mm) Double Bearing |
| Model |
A |
B |
C |
D |
C of G |
N.W (kg) |
G.W (kg) |
LxWxH (mm) |
| SLG354C |
1464 |
1393 |
585 |
511 |
498 |
1275 |
1375 |
1500 x 830 x 1230 |
| SLG354D |
1464 |
1393 |
585 |
511 |
518 |
1330 |
1430 |
1500 x 830 x 1230 |
| SLG354E |
1464 |
1393 |
585 |
511 |
538 |
1530 |
1630 |
1500 x 830 x 1230 |
| SLG354FS |
1539 |
1468 |
660 |
586 |
565 |
1740 |
1840 |
1580 x 830 x 1230 |
| SLG354F |
1539 |
1468 |
660 |
586 |
565 |
1690 |
1790 |
1580 x 830 x 1230 |
| Flange (mm) Single Bearing |
| S.A.E. No |
R |
S |
T |
X |
Y |
| 0 |
12 |
14 |
850.9 |
787.3 |
882 |
| 0 |
12 |
14 |
679.5 |
647.6 |
711 |
| 1.0 / 2.0 |
12 |
14 |
619.1 |
584.1 |
700 |
| 1 |
12 |
12.7 |
530.1 |
511.1 |
700 |
| Flange (mm) Double Bearing |
| S.A.E. No |
R |
S |
T |
W |
Y |
E |
| 0 |
16 |
14 |
850.9 |
772 |
882 |
170 |
| 0 |
16 |
14 |
679.5 |
634 |
711 |
170 |
| 1.0 / 2.0 |
12 |
14 |
619.1 |
569 |
648 |
150 |
| 1 |
12 |
12.7 |
530.2 |
496 |
553 |
170 |
| Disc Coupling (mm) |
| S.A.E. No |
AN |
AR |
AS |
AT |
V |
| 14 |
25.4 |
8 |
13.5 |
438.2 |
466.6 |
| 18 |
15.87 |
6 |
16.7 |
543 |
571.4 |
| 21 |
0 |
12 |
16.7 |
641.3 |
673 |
