Item Description

SLG454 Alternators
Ratings Winding 312 / 0.8 Power Factor
Duty / Temp Rise / Ambient T° Cont / 125k / 40°C Standby-150 / 40°C
Phase 3 Phase
Series Star 380 400 415 400 380 400 415 440
Parallel Star 190 200 208 220 190 200 208 220
Series Delta 220 230 240 254 220 230 240 254
Double Delta
kVA kW kVA kW kVA kW kVA kW kVA kW kVA kW kVA kW kVA kW
SLG454S 1094 875 1125 900 1125 900 1100 880 1137.5 910 1175 940 1175 940 1145 916
SLG454A 1225 980 1260 1008 1260 1008 1235 988 1275 1020 1315 1052 1315 1052 1290 1032
SLG454B 1360 1088 1400 1120 1400 1120 1375 1100 1415 1132 1460 1168 1460 1168 1430 1144
SLG454C 1505 1204 1550 1240 1550 1240 1520 1216 1570 1256 1615 1292 1615 1292 1590 1272
SLG454D 1615 1292 1650 1320 1650 1320 1620 1296 1675 1340 1720 1376 1720 1376 1685 1348
SLG454E 1845 1476 1900 1520 1900 1520 1865 1492 1920 1536 1980 1584 1980 1584 1940 1552
SLG454F 2020 1616 2080 1664 2080 1664 2040 1632 2105 1684 2170 1736 2170 1736 2125 1700
SLG454G 2135 1708 220 1760 2200 1760 2160 1728 2225 1780 2295 1836 2295 1836 2250 1800

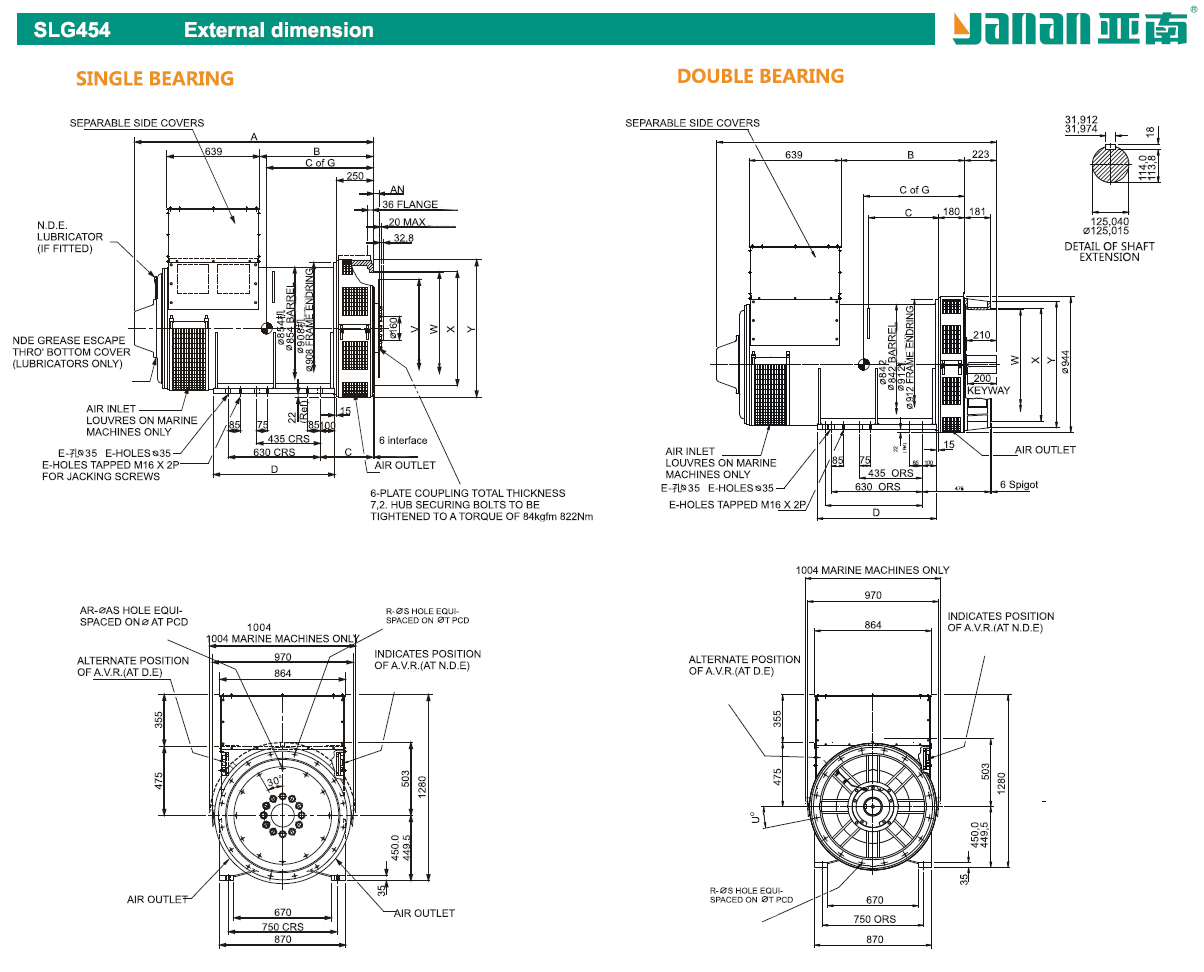

Dimension (mm) Single Bearing
Model C of G A B C D E Weight (Kg)
SLG454S 710 1643 778.5 365 830 6 2380
SLG454A 710 1643 778.5 365 830 6 2560
SLG454B 710 1643 778.5 365 830 6 2760
SLG454C 750 1643 778.5 365 830 6 3018
SLG454D 710 1793 928.5 365 830 6 3315
SLG454E 710 1793 928.5 365 830 6 3556
SLG454F 825 1878 1013.5 365 1000 8 3840
SLG454G 850 1940 1013.5 365 1000 8 4054
Dimension (mm) Double Bearing
Model C of G A B C D E Weight (Kg)
SLG454S 625 1795 708.5 433 830 6 2560
SLG454A 640 1795 708.5 433 830 6 2710
SLG454B 640 1795 708.5 433 830 6 2800
SLG454C 680 1795 708.5 433 830 6 2967
SLG454D 710 1945 858.5 485 830 6 3267
SLG454E 730 1945 858.5 485 830 6 3506
SLG454F 735 2069 943.5 593 1000 8 3807
SLG454G 780 2132 943.5 593 1000 8 4022
Flange (mm) Single Bearing
SAE R S T W X Y
0 16 14 851 772 787.3 944
0 12 14 679.5 632 647.6 944
1.0 / 2.0 12 14 619.1 568 584.1 944
1 12 12.7 530.2 496 511.1 944
Flange (mm) Double Bearing
SAE R S T W X Y
0 16 14 851 768 787.3 882
0 12 14 679.1 620 647.6 711
Disc Coupling (mm)
SAE AN AR AS AT V
14 25.4 8 13.5 438.1 466.6
18 15.87 6 16.7 543 571.4
21 0 12 16.7 641.3 673
24 0 12 20.7 692 733.3
